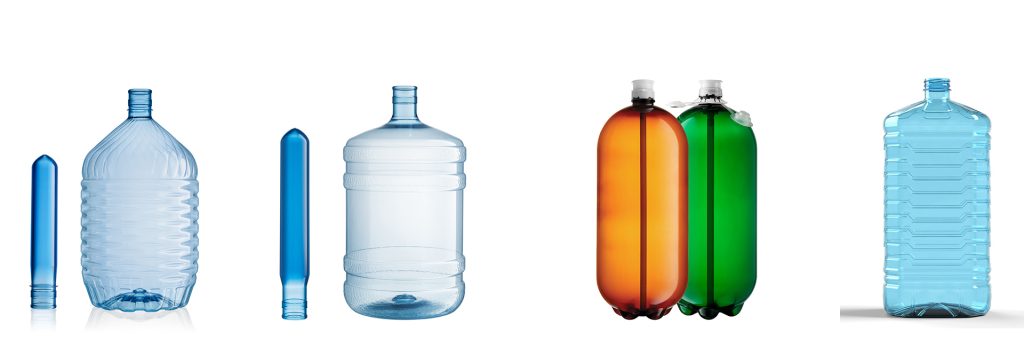

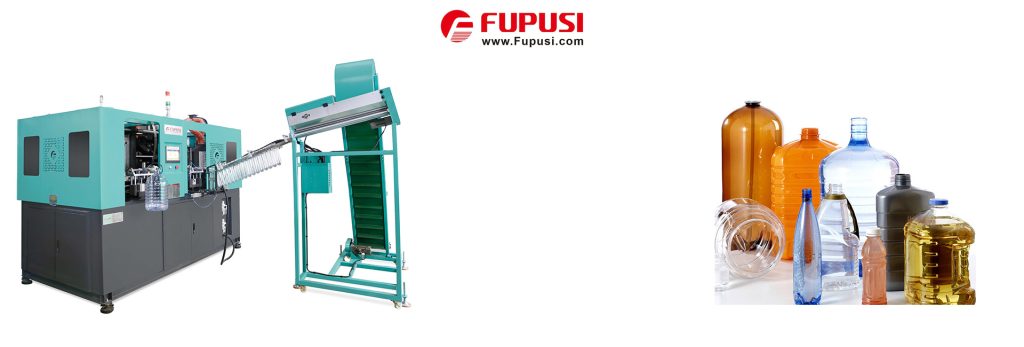

The series is used for making big capacity bottles, with reliable performance, stable operation, and high production efficiency, and is suitable for the domestic and foreign oil bottles, beer barrels, and gallon bottles industry.
|
项目 |
Item |
unit |
FPS5L-1 |
FPS5L-2 |
FPS10L-1 |
FPS20L-1 |
|
|
瓶型规格 Bottle type Specification |
腔数 |
Cavity |
PCS |
1 |
2 |
1 |
1 |
|
理论产量 |
Theoretical Output |
PCS/H |
600-700 |
1200-1500 |
500-600 |
450-550 |
|
|
最大瓶子容量 |
Max. Volume |
L |
5 |
5 |
10 |
20 |
|
|
最大瓶子高度 |
Max. Height |
MM |
400 |
400 |
450 |
490 |
|
|
最大瓶子直径 |
Max. Diameter |
MM |
180 |
180 |
220 |
250 |
|
|
瓶子口径 |
Neck Size |
MM |
38-48 |
38-48 |
38-55 |
38-65 |
|
|
电力规格 Power Specification |
灯管数量 |
Number of tubes |
PCS |
36 |
60 |
36 |
36 |
|
烘箱区域 |
Zone of oven |
PCS |
3 |
5 |
3 |
3 |
|
|
灯管功率 |
Power of tubes |
KW |
2 |
2 |
2 |
2 |
|
|
最大加热功率 |
Max. Heating power |
KW |
72 |
120 |
72 |
72 |
|
|
总功率 |
Total Power |
KW |
80 |
130 |
80 |
80 |
|
|
实际耗电量 |
Actual consumption |
KW |
15 |
25 |
15 |
15 |
|
|
空压规格 Air Pressure Specification |
动作压力 |
Operation pressure |
MPa |
0.7-0.85 |
0.7-0.85 |
0.7-0.85 |
0.7-0.85 |
|
动作耗气量 |
Action air consumption |
m³/min |
1000 |
1600 |
1000 |
1000 |
|
|
吹气压力 |
Blowing pressure |
MPa |
2.5-3.0 |
2.5-3.0 |
2.5-3.0 |
2.5-3.0 |
|
|
吹气耗气量 |
Blowing air consumption |
m³/min |
2000 |
4000 |
3000 |
4000 |
|
|
机器规格 Machine Specification |
机器尺寸 |
Machine size |
M |
2.1*1.5*1.85 |
4.0*1.75*1.85 |
2.3*1.5*1.85 |
2.5*1.5*1.85 |
|
机器重量 |
Machine weight |
T |
2.9 |
4.5 |
3.5 |
4.1 |
|
|
Actual output depends on bottle shape and preform qualification, the above technical parameters are subject to continual updates, please rake the real product as the base. |
|||||||
