Taizhou Fupusi Machinery Co., Ltd.
Product Overview

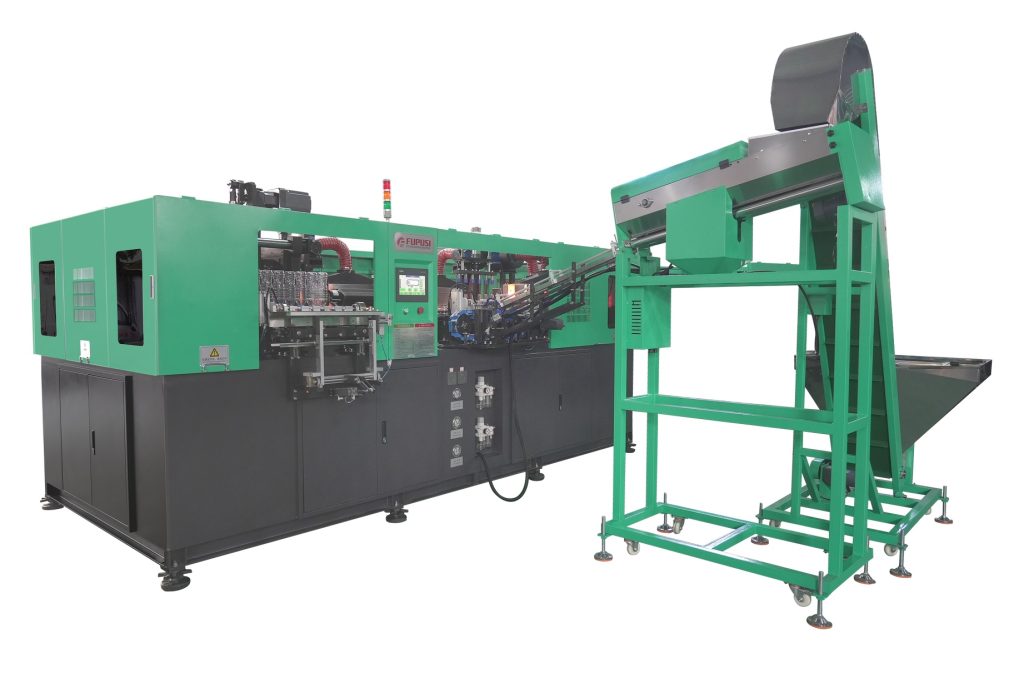

Taizhou Fupusi Machinery Co., Ltd. delivers the F Series Full-automatic blow molding machine, designed for cost-efficient, space-saving production of PET bottles (100ml–30L).
Key Features:
✔ User-friendly: Intuitive controls & minimal training required
✔ Low maintenance: Robust construction reduces downtime
✔ Versatile: Shapes bottles for water, soda, oils, cosmetics, and pesticides
2. Technical Specifications
Capacity: 100ml to 30L
Applications:
Beverages: Mineral water, carbonated drinks
Household: Edible oils, detergents
Specialty: Cosmetics, pesticide containers
What We Do
Photos of Bottles

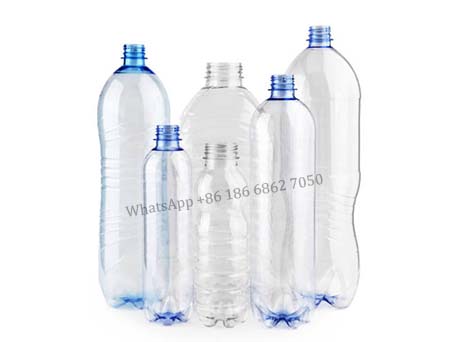

Mineral Water bottles
6 cavity 7200-7700BPH

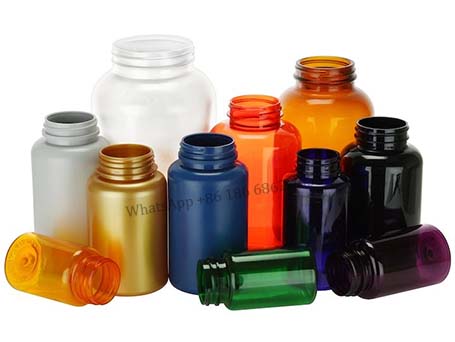

Plastic Small Jar Bottles
6 cavity 6800-7000BPH

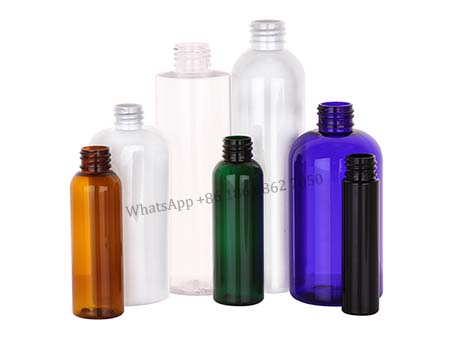

Cosmetic Bottles
6 cavity 6400-6600BPH
| Item | Unit | FPS-600-4S | FPS-600-6S | FPS-600-8S |
| Cavity | PCS | 4 | 6 | 8 |
| Theoretical Output | BPH | 4800-5200 | 7200-7700 | 9600-10000 |
| Max. Volume | L | 0.65 | 0.65 | 0.65 |
| Max. Height | MM | 330 | 330 | 330 |
| Max. Diameter | MM | 66 | 66 | 66 |
| Neck Size | MM | 28-38 | 28-38 | 28-38 |
| Number of light tubes | PCS | 50 | 50 | 60 |
| Zone of Oven | PCS | 5 | 5 | 6 |
| Power of light tube | KW | 2 | 2 | 2 |
| Max. Heating Power | KW | 100 | 100 | 120 |
| Total Power | KW | 114 | 114 | 134 |
| Actual Consumption | KW | 22-28 | 22-28 | 28-34 |
| Operation Pressure | MPA | 0.7-0.85 | 0.7-0.85 | 0.7-0.85 |
| Action air consumption | M3/MIN | 1600 | 2000 | 2500 |
| Blowing Pressure | MPA | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 |
| Blowing air consumption | M3/MIN | 2000 | 2500 | 3000 |
| Machine Size | M | 4.3*1.9*2.1 | 4.8*1.9*2.1 | 5.4*1.9*2.1 |
| Machine Weight | T | 5.5 | 6.5 | 8.5 |
