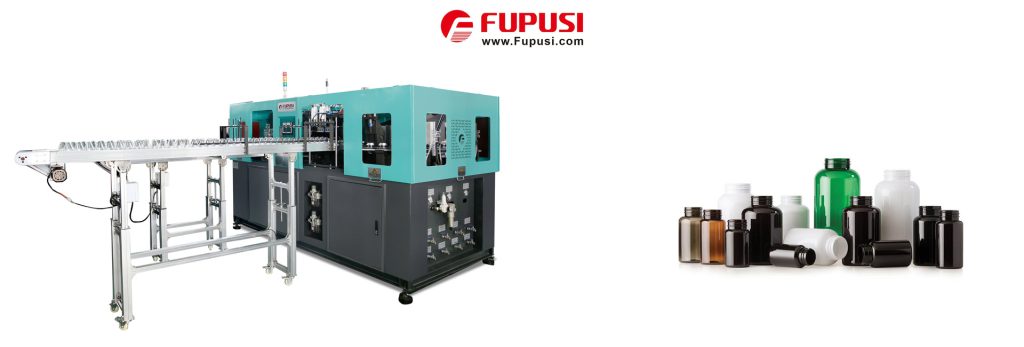

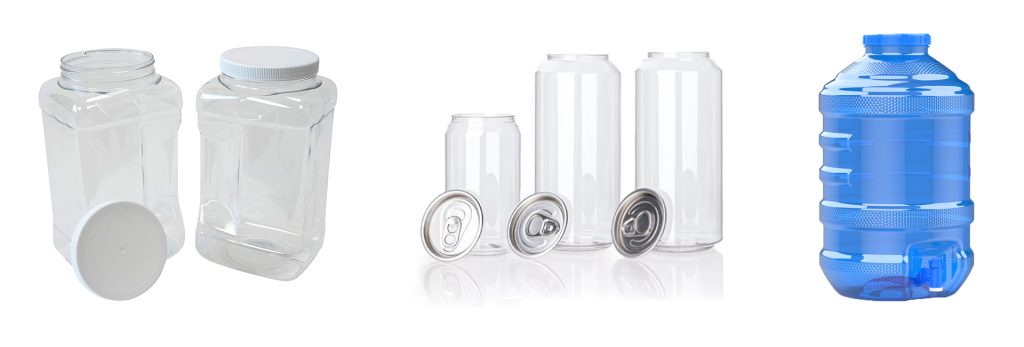

Taizhou Fupusi Machinery Co., Ltd., The series is our standard model for Jar bottles, with reliable performance, stable operation, and high production efficiency. It is suitable for the Food, Medical containers, Cosmetic, Candy, Honey, Dried fruit, etc, big container plastic industries.

ITEM	UNIT	FPS114.3-4	FPS130-4	FPS150-4	FPS200-4
Cavity	PCS	4	4	4	4
Capacity output	BPH	3800-4500	3400-4000	3000-3200	2800-3200
Max. Volume	L	1.5	2.5	3.5	5
Max. Height	MM	330	340	350	360
Max. Diameter	MM	105	120	140	190
Neck Size	MM	90	107	127	177
Number of Light	PCS	40	50	60	84
Zone of oven	PCS	5	5	5	7
Power of tubes	KW	2	2	2	2
Max. Heating power	KW	80	100	120	168
Total power	KW	90	110	130	182
Actual consuption	KW	18-27	22-33	26-39	36-55
Operation pressure	MPa	0.75-0.85	0.75-0.85	0.75-0.85	0.75-0.85
Action air consuption	M³/min	1600	2000	2500	3500
Blowing pressure	MPa	2.5-3.0	2.5-3.0	2.5-3.0	2.5-3.0
Blowing consumption	M³/min	2500	3000	3500	5000
Machine Size	M	4.3*1.9*2.1	4.6*1.9*2.1	4.9*1.9*2.1	6.5*1.9*5.8
Machine weight	T	4.5	5.0	5.5	7.5
